OG3 Pro Series Joker Green
$649.00

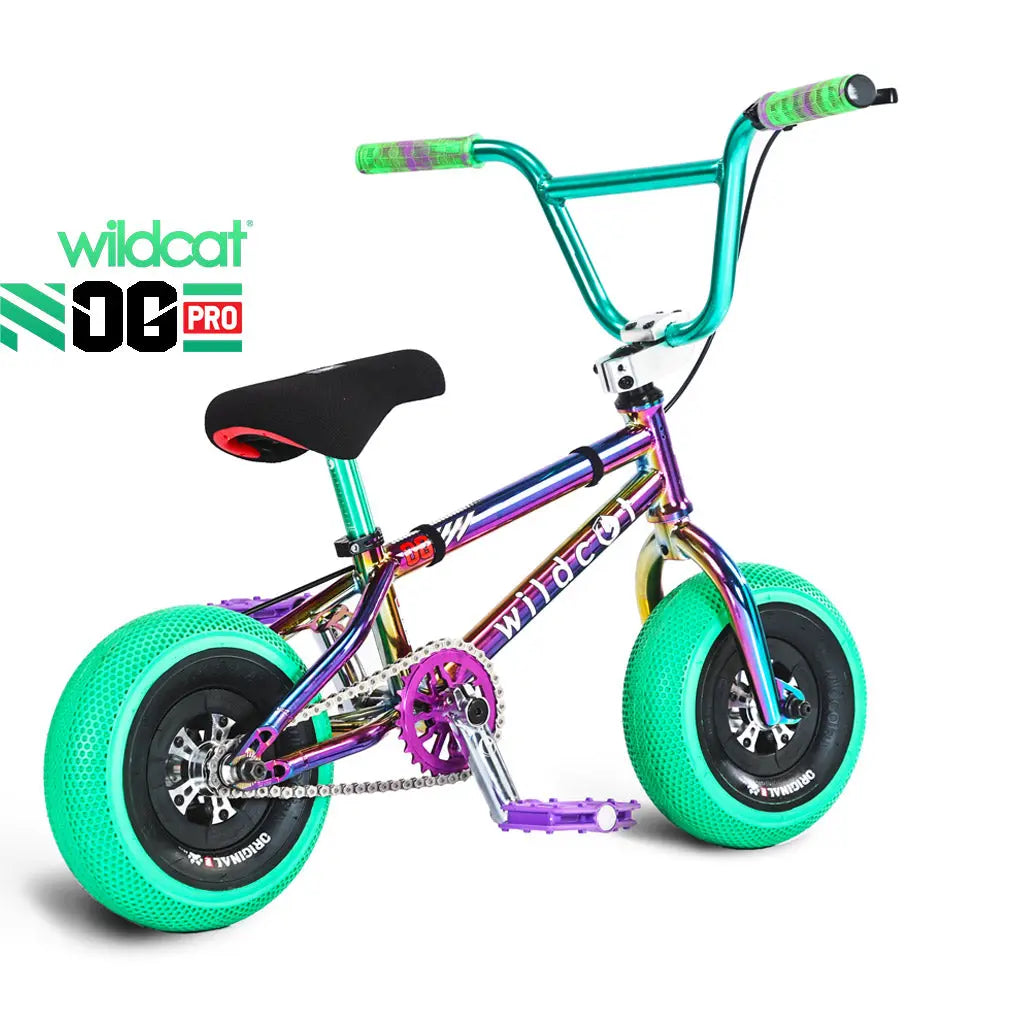

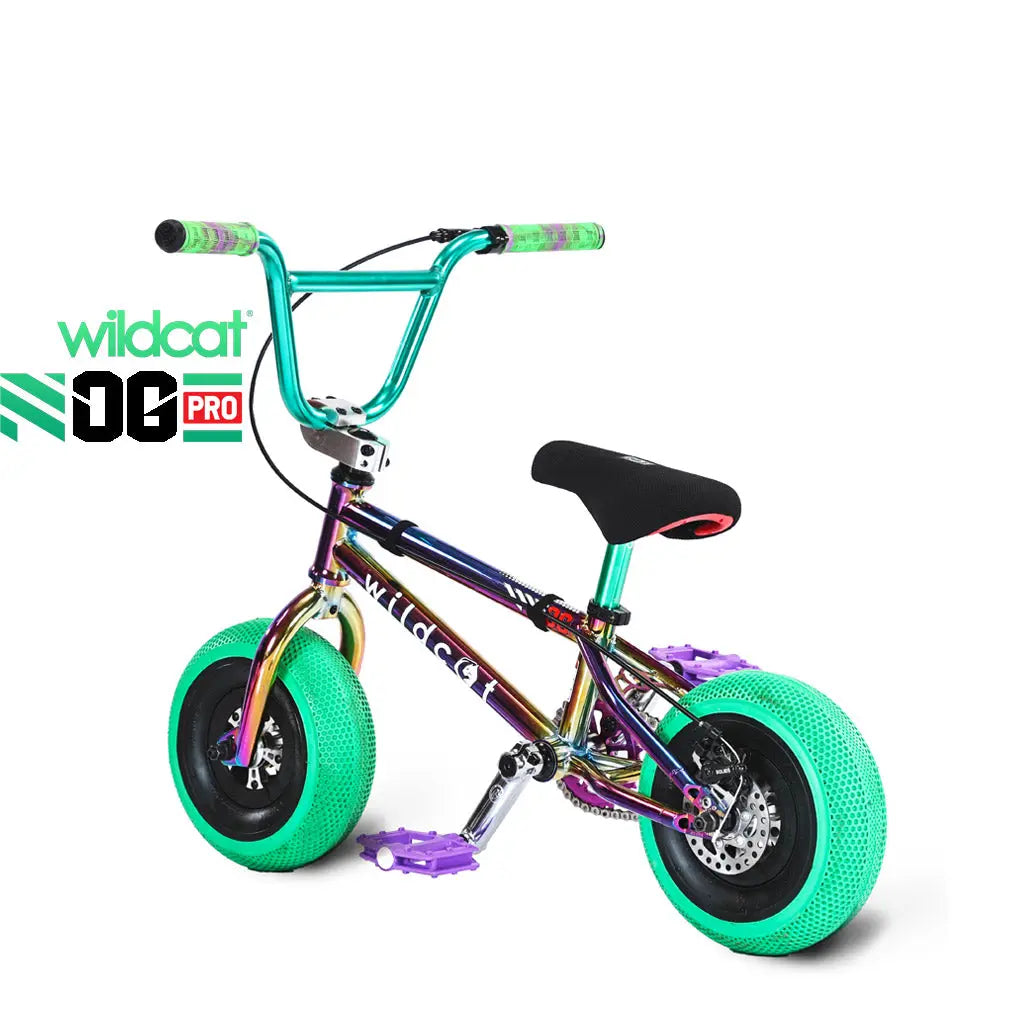

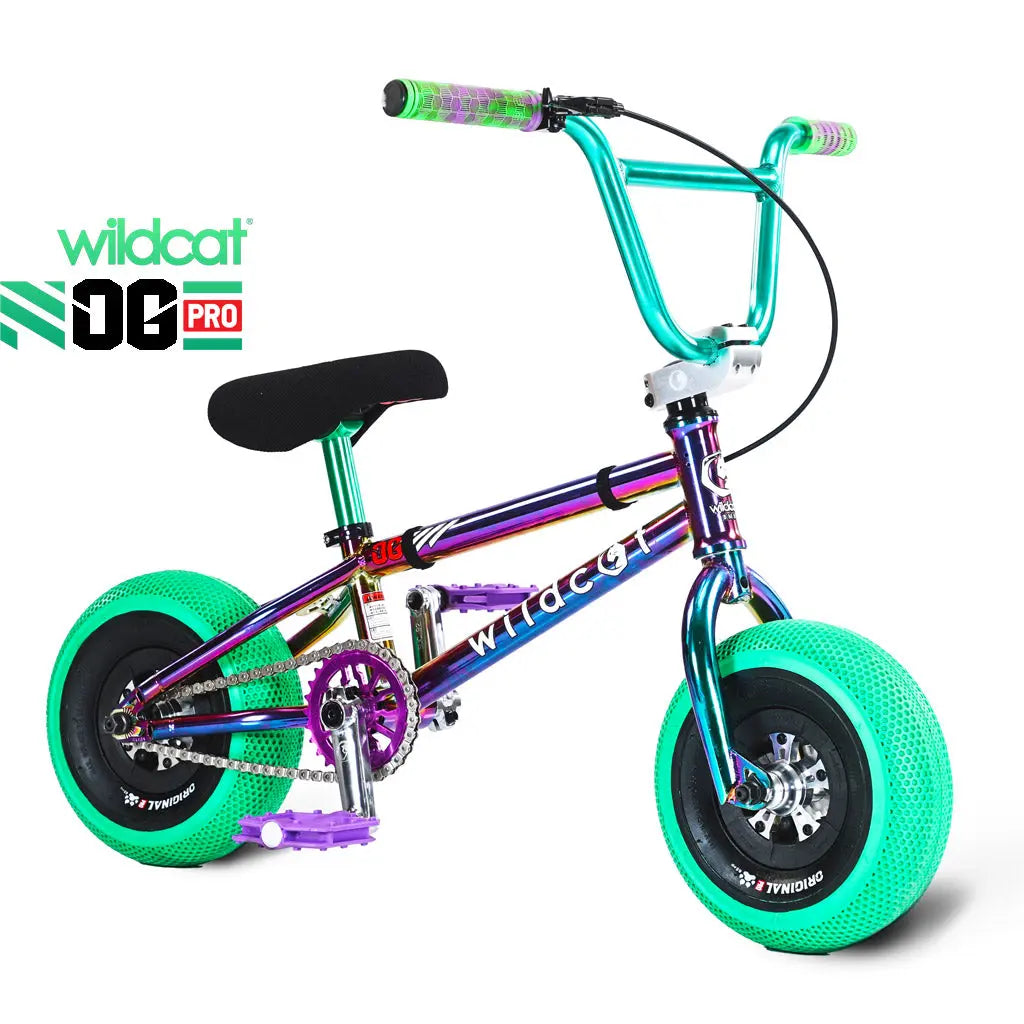

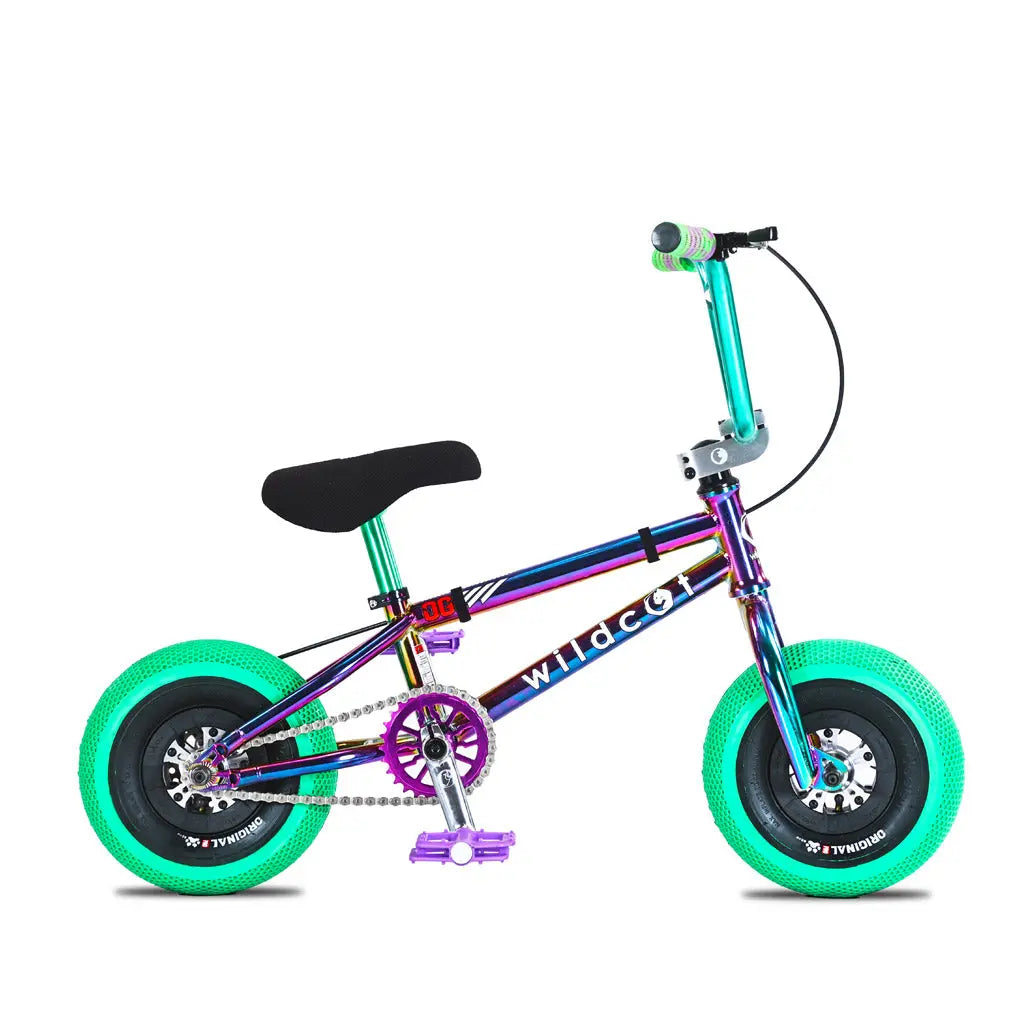

Wildcat Mini BMX OG3 Pro Series Joker Green
Get Steezy on the ALL NEW OG3 Pro Series Joker Green. Complete with new frame dropout, colour tyre, disc brake, T6 aluminium 2 pcs type handle bar, CNC cassette 9t driver, only 8.3kgs (without brake). Available in multiple colours, get the worlds leading Mini BMX today.
- βΌ Description
-
Brand New and top of range is the OG3 Pro Series. A true upgrade build for those on the next level, designed to take a serious amount of adult sized punishment from front-flips to 540 spins.

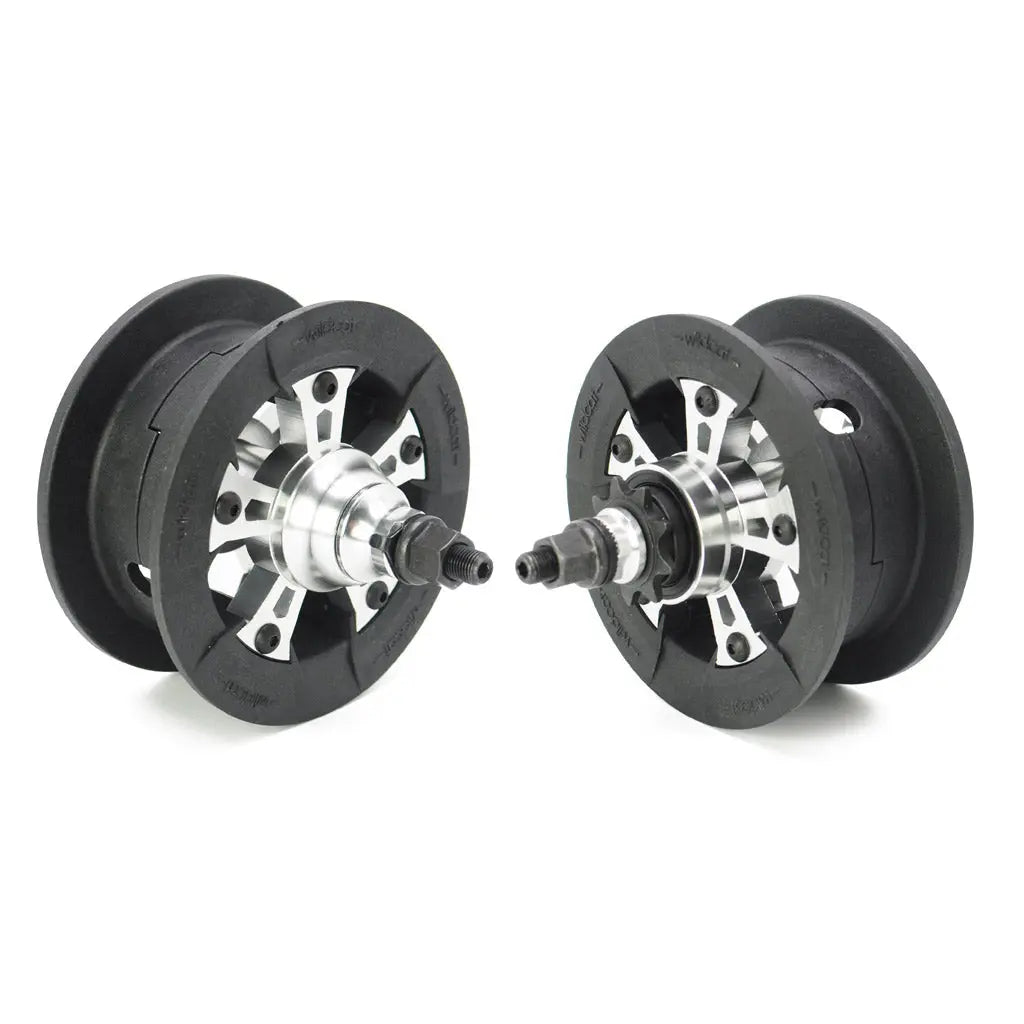

Wildcat has re-invented the wheel, seriously changing the Mini BMX game with the new patented Turbo wheel. The Turbo hub core is 100% aluminium forged and CNC tech making it stronger, truer and far lighter than anything else on the market. This new hub design rolls on an incredibly tough and light nylon rim, all held tight by an integrated lock system which as a bonus makes changing tyres a breeze.
All Wildcat Mini BMX's feature a sealed 9 tooth Wildcat cassette hub for fast, precise, and loud engagement, and the Pro Series range comes with disc brakes as standard.
Featuring: 6061 Aluminium 2 piece bars, 28 tooth aluminium chain wheel, strong 3 piece Cro-Moly crank tested successfully up to 120kg, recommended use up to 100kg, CNCβd chromoly forks with integrated head tube, fully adjustable pivot seat, sealed inner bearing head parts and a pro half link chain.
Suitable for park, track and competition use. (Road use requires reflectors and bell.)
- β Specifications
-
Axle: 10mm, chromoly steel, CNC
BB:Β Spain type
Brakes: Removable disc brake
Chain: Pro half link type, 56 links
Chain wheel: 28T forged aluminium
Crank: Three piece 4130 chromoly steel
Driver: Cassette 9T, full CNC
Frame: Hi-ten steel, casting dropout
Fork: CNC's steel
Handlebars: 6061 aluminum T6
Head tube: CNC integrated

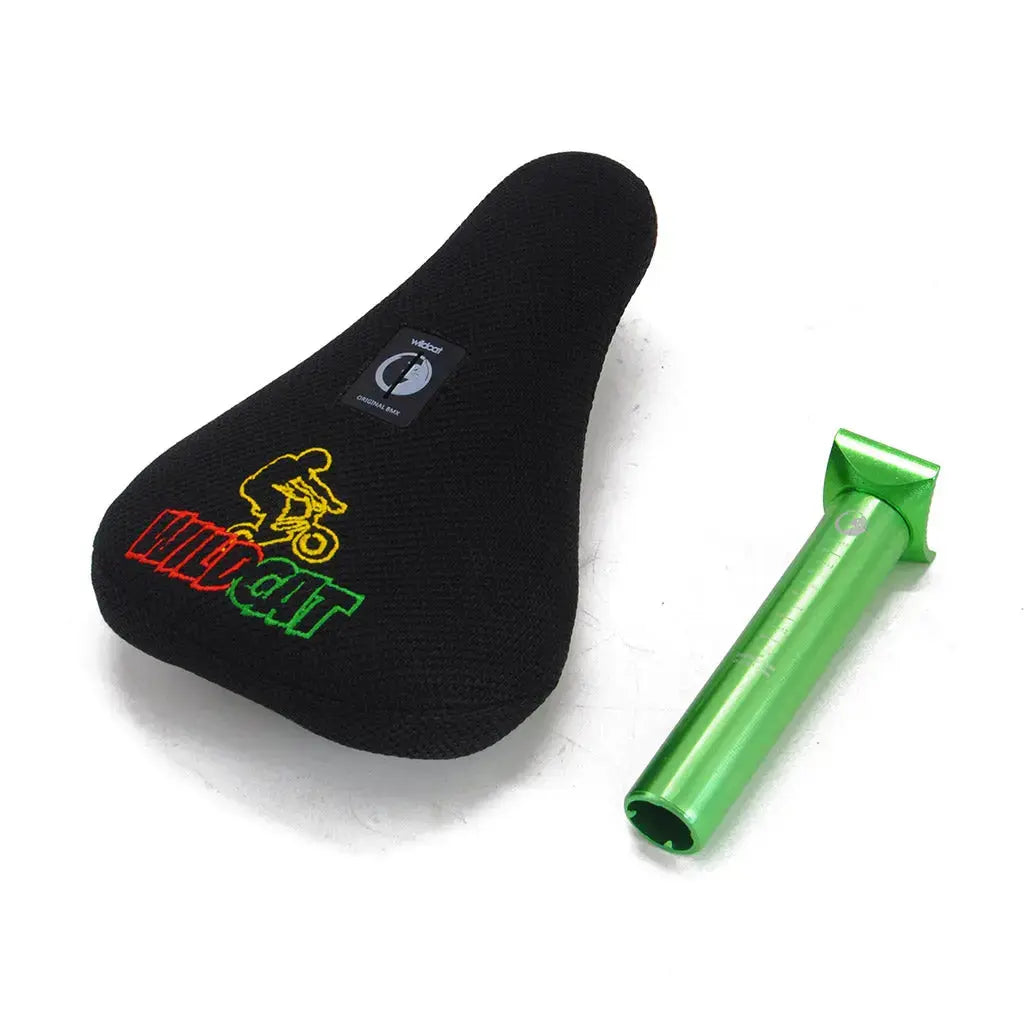

Seat: Pivotal type, aluminium seat post
Seat tube: 6"
Stem: 6061 aluminium, Top load
-
Top tube: 13.8"

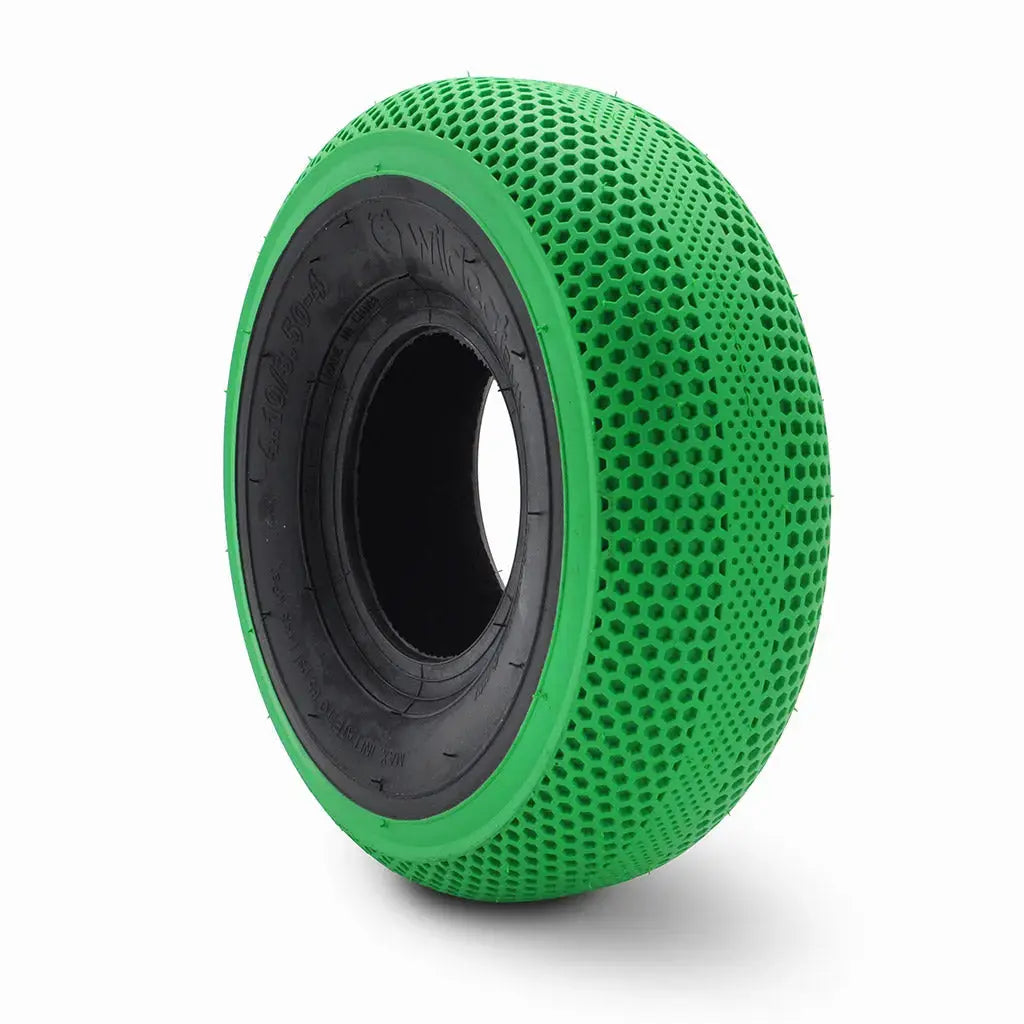

Tyres: Pro street, 65 psi,Β lighter and faster roll speed
Wheel: Turbo wheel, nylon and aluminium
Weight rating: 120KG capacity on 3 piece crank bikes.
Weight: 8.7kg (8.3kg without brakes)
-
- βSupport
-
Assembly Instructions
Download instructions here
Bikes are 90% assembled.
Required tools for assembly: 4, 5 & 6mm Allen key for seat and handle bars, 15mm spanner for pedals.
Warranty
12 months warranty on components and a limited lifetime warranty on the frame, you can shred with peace of mind.
Spare parts available separately.
See Warranty section for full details.
| Compare | OG3A | OG3 Pro Series | P30 | Lynx 16" BMX |
|---|---|---|---|---|
| Brakes | Disc Brakes | Disc Brakes | Disc Brakes with Gyro kit | 6061 Aluminium U brake |
| Weight Rating* | 80kg | 100kg | 100kg | N/A |
| Handle bars | 2 piece 4130 Chromoly | 4 piece 6061 Aluminium | 4 piece 6061 Aluminium | 4 piece 6061 Aluminium |
| Handle bar size | Small | Medium | Medium | Medium |
| Frame | Hi-ten steel | Hi-ten steel | Full 4130 Chromoly | Full 4130 Chromoly |
| Tyres | Pro-Street, Pattern T04 | Pro-Street, Pattern T04 | Pro-Street, Pattern T04 | Pro-Street 16"x2.25 |
| Crank | One Piece hi-ten steel arms | 3 piece 4130 Chromoly | 3 piece 4130 Chromoly | 3 piece 4130 Chromoly |
| Stem | Premium 6061 Aluminium Top Load | Premium 6061 Aluminium Top Load | Premium 6061 Aluminium Top Load | Premium 6061 Aluminium Top Load |
| Head parts | Standard cup | Fully sealed bearings | Fully sealed bearings | Fully sealed bearings |
| Seat | One Piece FAT type | Pivotal | Pivotal | Pivotal |
| Chain | Traditional KMC Z410 | Traditional KMC Z410 | Traditional KMC Z410 or Half Link | Half link |
| Sprocket | 28t Hi-ten Steel | 28t forged Aluminium | 28t forged Aluminium | Guarded 25t, 7075 Aluminium |
| Wheel | Cross Wheel ABS/Aluminium | Turbo Wheel Nylon/Aluminium | Turbo Wheel Nylon/Aluminium | Aluminium, 16x28H, double walled |
| * Tested on riders up to weight rating | ||||
